RFP150N N-Channel Power MOSFET

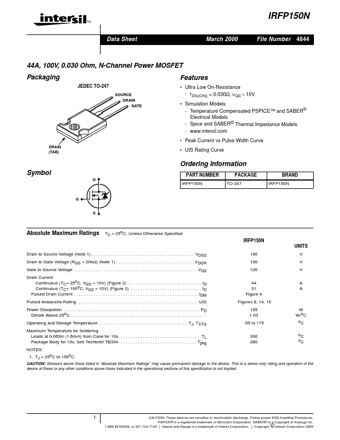

📥 Download Datasheet  Datasheet Preview Page 1

Description

IRFP150N TM Data Sheet March 2000 File Number 4844 44A, 100V, 0.030 Ohm, N-Channel Power MOSFET Packaging JEDEC TO-247 SOURCE DRAIN GATE .

📥 Download Datasheet

Preview of RFP150N PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RFP150N
Manufacturer
Intersil Corporation
File Size
127.51 KB
Datasheet
RFP150N_IntersilCorporation.pdf
Description
N-Channel Power MOSFET

Features

* Ultra Low On-Resistance - rDS(ON) = 0.030Ω, VGS = 10V
* Simulation Models - Temperature Compensated PSPICE™ and SABER© Electrical Models - Spice and SABER© Thermal Impedance Models - www. intersil. com
* Peak Current vs Pulse Width Curve DRAIN (TAB)
* UIS Rating Cur
