RFP15N06L Datasheet, Mosfet, Fairchild Semiconductor

RFP15N06L Features

  • Mosfet
  • 15A, 50V and 60V
  • rDS(ON) = 0.140Ω
  • Design Optimized for 5V Gate Drives
  • Can be Driven from QMOS, NMOS, TTL Circuits
  • Compatible with Autom

PDF File Details

Part number:

RFP15N06L

Manufacturer:

Fairchild Semiconductor

File Size:

354.05kb

Download:

📄 Datasheet

Description:

N-channel power mosfet.

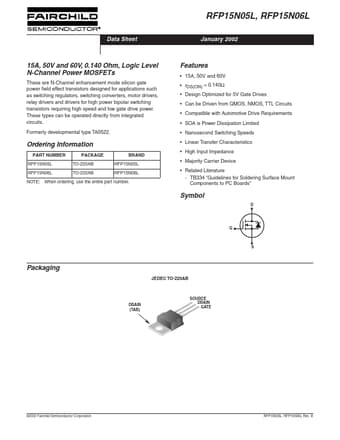

Datasheet Preview: RFP15N06L 📥 Download PDF (354.05kb)
Page 2 of RFP15N06L Page 3 of RFP15N06L

RFP15N06L Application

  • Applications such as switching regulators, switching converters, motor drivers, relay drivers and drivers for high power bipolar switching transisto
