RFP15P05 - P-Channel Power MOSFET

Datasheet Summary

Features

  • 15A, 50V.
  • rDS(ON) = 0.150Ω.
  • Temperature Compensating PSPICE® Model.
  • Peak Current vs Pulse Width Curve.
  • UIS Rating Curve.
  • Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Ordering Information PART NUMBER RFD15P05 RFD15P05SM RFP15P05.

📥 Download Datasheet

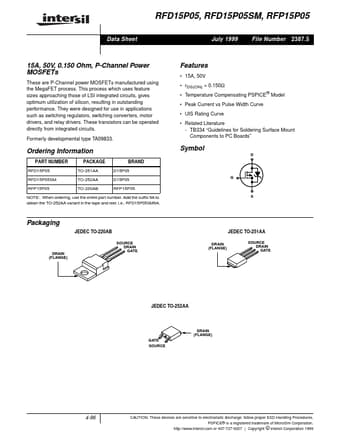

Datasheet preview – RFP15P05
