SSP45N20A

advanced power MOSFET

SSP45N20A Features

* Avalanche Rugged Technology Rugged Gate Oxide Technology www.DataSheet4U.com SSP45N20A BVDSS = 200 V RDS(on) = 0.065 Ω ID = 35 A TO-220 Lower Input Capacitance Improved Gate Charge Extended Safe Operating Area Lower Leakage Current : 10 µ A (Max.) @ VDS = 200V Low RDS(ON) : 0.054 Ω (Typ.) 1 2 3

SSP45N20A Datasheet (277.90 KB)

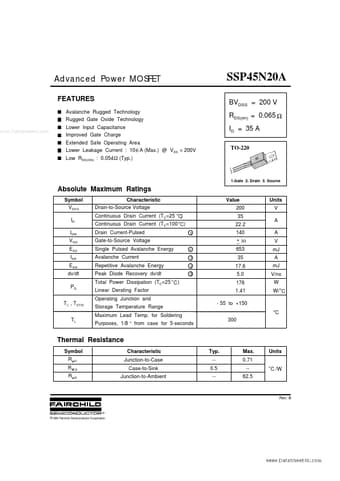

Preview of SSP45N20A PDF

Datasheet Details

Part number:

SSP45N20A

Manufacturer:

Fairchild Semiconductor

File Size:

277.90 KB

Description:

Advanced power mosfet.
