TSSOP-16 Datasheet - Fairchild Semiconductor

TSSOP-16 16 Lead TSSOP Package Dimensions

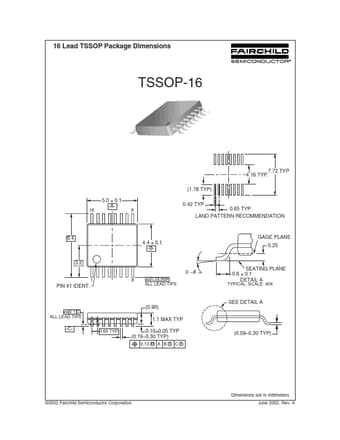

16 Lead TSSOP Package Dimensions TSSOP-16 7.72 TYP 4.16 TYP. (1.78 TYP) 5.0 ± 0.1 -A0.42 TYP 8 16 0.65 TYP LAND PATTERN RECOMMENDATION 6.4 GAGE PLANE 4.4 ± 0.1 -B3.2 0 8 1 8 0.2 C B A ALL LEAD TIPS 0.25 PIN #1 IDENT. TYPICAL, SCALE: 40X SEATING PLANE 0.6 ± 0.1 DETAIL A SEE DETAIL A 0.1 C ALL LEAD TIPS (0.90) 1.1 MAX TYP 0.65 TYP -C- 0.10±0.05 TYP (0.19 0.30 TYP) 0.13 M A B S C S (0.09 0.20 TYP) Dimensions are in millimeters ©2002 Fairchild Semiconductor C.

TSSOP-16-FairchildSemiconductor.pdf

TSSOP-16 Datasheet Preview — Preview of TSSOP-16 PDF

Datasheet Details

Part number:

TSSOP-16

Manufacturer:

Fairchild Semiconductor

File Size:

132.26 KB

Description:

16 lead tssop package dimensions.
