TSSOP-B8J Datasheet - Rohm

LSI Assembly

TSSOP-B8J

79.98 KB

Lsi assembly.

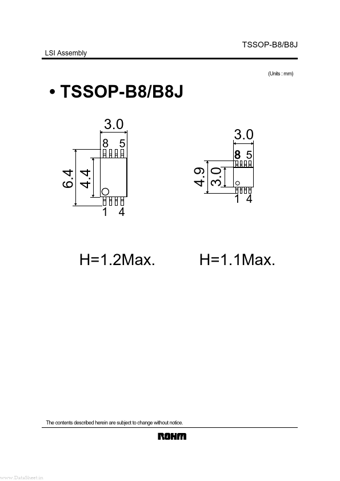

LSI Assembly TSSOP-B8/B8J (Units : mm) TSSOP-B8/B8J 3.0 8 5 3.0 8 5 6.4 4.4 4.9 3.0 1 4 1 4 H=1.2Max. H=1.1Max. The contents descri.
