Part number: TSSOP
Manufacturer: STATS ChipPAC
File Size: 119.46KB
Download: 📄 Datasheet

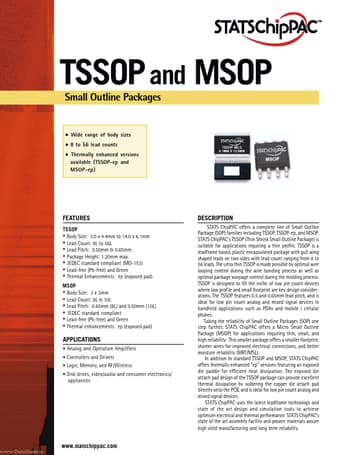

Description: Small Outline Packages
TSSOP
* Body Size: 3.0 x 4.4mm to 14.0 x 6.1mm
* Lead Count: 8L to 56L
* Lead Pitch: 0.50mm & 0.65mm
* Package Height: 1.20mm max.
* JEDEC standard co.
requiring a thin profile. TSSOP is a leadframe based, plastic encapsulated package with gull wing shaped leads on two si.
STATS ChipPAC offers a complete line of Small Outline Package (SOP) families including TSSOP, TSSOP-ep, and MSOP. STATS ChipPAC’s TSSOP (Thin Shrink Small Outline Package) is suitable for applications requiring a thin profile. TSSOP is a leadframe ba.
Image gallery
