TSSOP-B14J Datasheet - Rohm

TSSOP-B14J IC Packages

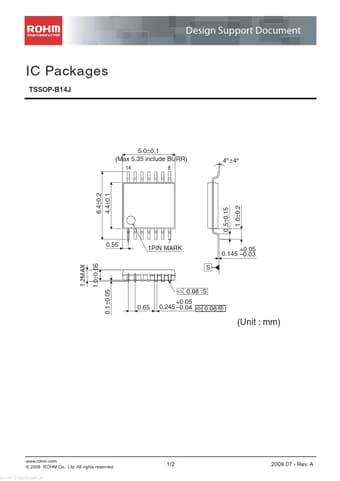

Design Support Document IC Packages TSSOP-B14J 5.0±0.1 (Max 5.35 include BURR) 14 8 4º ±4º 6.4±0.2 4.4±0.1 0.55 1.0±0.05 1 7 1PIN MARK S +0.05 0.145 0.03 1.2MAX 0.1±0.05 0.08 S 0.65 +0.05 0.245 0.04 0.08 M 0.5±0.15 www.rohm.com © 2009 ROHM Co., Ltd. All rights reserved. 1.0±0.2 (Unit : mm) 1/2 2009.07 - Rev. A www.DataSheet.in Notice Notes No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The.

TSSOP-B14J Datasheet (104.05 KB)
