TSSOP-16 Datasheet - RFM

TSSOP-16 - 16-Pin Ceramic Case

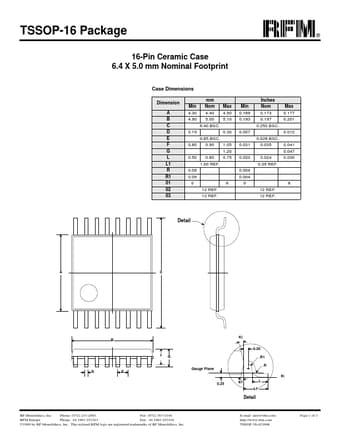

TSSOP-16 Package 16-Pin Ceramic Case 6.4 X 5.0 mm Nominal Footprint Case Dimensions Dimension A B C D E F G L L1 R R1 01 02 03 mm Nom Max 4.40 4.50 5.00 5.10 6.40 BSC. 0.19 0.30 0.65 BSC. 0.80 0.90 1.05 1.20 0.50 0.60 0.75 1.00 REF. 0.09 0.09 0 8 12 REF. 12 REF. Min 4.30 4.90 Inches Nom Max 0.173 0.177 0.197 0.201 0.252 BSC. 0.012 0.026 BSC. 0.035 0.041 0.047 0.024 0.030 0.39 REF. Min 0.169 0.193 0.007 0.031 0.020 0.004 0.004 0 8 12 REF. 12 REF. Detail A C B θ2 0.20 F G Gauge Plane R1 .

TSSOP-16-RFM.pdf

TSSOP-16 Datasheet Preview — Preview of TSSOP-16 PDF

Datasheet Details

Part number:

TSSOP-16

Manufacturer:

RFM

File Size:

121.11 KB

Description:

16-pin ceramic case.
