IRFP254B - 250V N-Channel MOSFET

Product Overview

Fairchild

Part number	IRFP254B
Manufacturer	Fairchild
File Size	670.78 KB
Description	250V N-Channel MOSFET
Datasheet	IRFP254B Datasheet

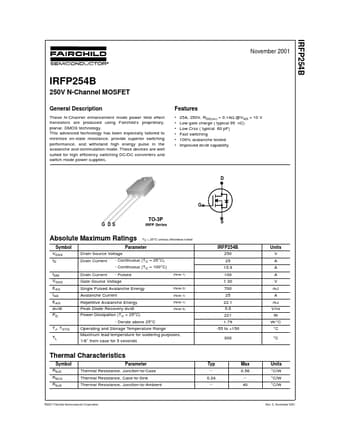

Additional preview pages of the IRFP254B datasheet.

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology.

25A, 250V, RDS(on) = 0.14Ω @VGS = 10 V Low gate charge ( typical 95 nC) Low Crss ( typical 60 pF) Fast switching 100% avalanche tested Improved dv/dt capability D !.
◀ ▲.
G! TO-3P G DS IRFP Series ! S Absolute Maximum Ratings Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TJ, TSTG TL TC = 25°C unless otherwise noted Parameter Drain-Source Voltage - Continuous (TC = 25°C) Drain Current - Continuous (TC = 100°C) Dr.
