IRFP254A Datasheet, Transistor, Inchange Semiconductor

IRFP254A Features

  • Transistor
  • Drain Current
      –ID= 25A@ TC=25℃
  • Drain Source Voltage- : VDSS= 250V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 0.14Ω(Max)
  • Fast

PDF File Details

Part number:

IRFP254A

Manufacturer:

Inchange Semiconductor

File Size:

236.19kb

Download:

📄 Datasheet

Description:

N-channel mosfet transistor.

  • Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL

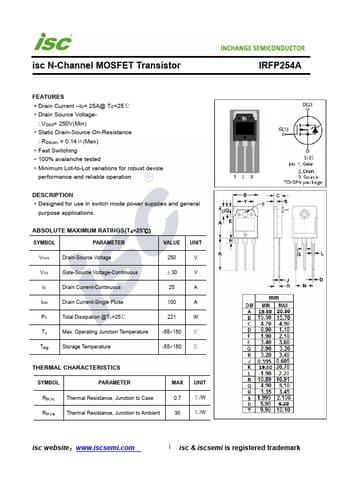

  • Datasheet Preview: IRFP254A 📥 Download PDF (236.19kb)
    Page 2 of IRFP254A

    IRFP254A Application

    • Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 250 V VGS Gate-Source Voltage-Continu
