IRFP250M - N-Channel MOSFET

Datasheet Summary

Features

  • br>.
  • Static drain-source on-resistance: RDS(on)≤75mΩ.
  • Enhancement mode:.
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

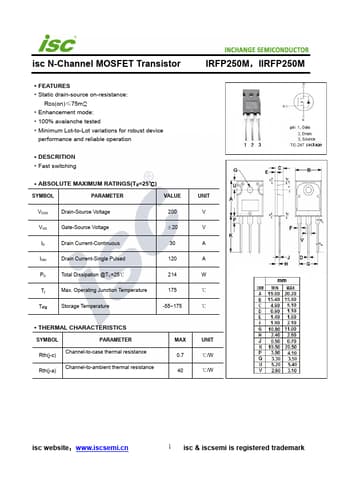

Datasheet preview – IRFP250M

Datasheet Details

Part number IRFP250M
Manufacturer INCHANGE
File Size 237.09 KB
Description N-Channel MOSFET
Datasheet download datasheet IRFP250M Datasheet
Additional preview pages of the IRFP250M datasheet.

📁 Similar Datasheet

  • IRFP250MPbF - MOSFET (Infineon)
  • IRFP250MPBF - Power MOSFET (International Rectifier)
  • IRFP250 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • IRFP250 - N-Channel Power MOSFET (Fairchild)
  • IRFP250 - N-CHANNEL MOSFET (ST Microelectronics)
  • IRFP250 - Power MOSFET (Vishay)
  • IRFP250 - Power MOSFET (International Rectifier)
  • IRFP250 - Power MOSFET (IXYS)
  • IRFP250A - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • IRFP250A - Advanced Power MOSFET (Fairchild)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
isc N-Channel MOSFET Transistor INCHANGE Semiconductor IRFP250M，IIRFP250M ·FEATURES ·Static drain-source on-resistance: RDS(on)≤75mΩ ·Enhancement mode: ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ·DESCRITION ·Fast switching ·ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 200 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 30 IDM Drain Current-Single Pulsed 120 PD Total Dissipation @TC=25℃ 214 Tj Max. Operating Junction Temperature 175 Tstg Storage Temperature -55~175 UNIT V V A A W ℃ ℃ ·THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth(j-c) Channel-to-case thermal resistance Rth(j-a) Channel-to-ambient thermal resistance MAX 0.
