IRFP21N60L

N-Channel MOSFET

IRFP21N60L Features

* Low drain-source on-resistance: RDS(ON) =0.32Ω (MAX)

* Enhancement mode: Vth = 3.0 to 5.0V (VDS = 10 V, ID=0.25mA)

* 100% avalanche tested

* Minimum Lot-to-Lot variations for robust device performance and reliable operation

* DESCRITION

* Switching Voltage Regulators

* ABSOL

IRFP21N60L Datasheet (395.71 KB)

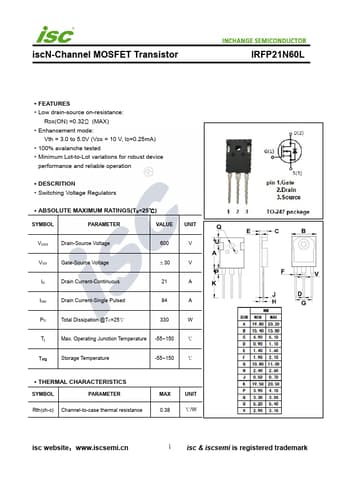

Preview of IRFP21N60L PDF

Datasheet Details

Part number:

IRFP21N60L

Manufacturer:

INCHANGE

File Size:

395.71 KB

Description:

N-channel mosfet.
