IRFP22N50APBF

Power MOSFET

IRFP22N50APBF Features

* 45 (.215) 2X 1.40 (.056) 3X 1.00 (.039) 0.25 (.010) M 3.40 (.133) 3.00 (.118) LEAD ASSIGNMENTS Hexfet IGBT ASSIGNMENTS 1 -LEAD Gate 1 - Gate 1 - GATE2 - Collector 2 - Drain 2 - DRAIN 3 - Source 3 - Emitter 3 - SOURCE 4 - Drain 4 - Collector 4 - DRAIN TO-247AC Part Marking Information EXAMPLE: T H

IRFP22N50APBF Datasheet (212.90 KB)

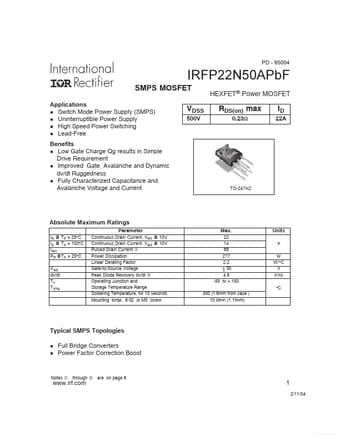

Preview of IRFP22N50APBF PDF

Datasheet Details

Part number:

IRFP22N50APBF

Manufacturer:

IRF

File Size:

212.90 KB

Description:

Power mosfet.
PD - 95004 SMPS MOSFET Applications l Switch Mode Power Supply (SMPS) l UninterruptIble Power Supply l High Speed Power Switching l Lead-Free Benefit.
