MM74HC4514

4-to-16 Line Decoder with Latch

MM74HC4514 Features

* s Typical propagation delay: 18 ns s Low quiescent power: 80 µA maximum (74HC Series) s Low input current: 1 µA maximum s Fanout of 10 LS-TTL loads (74HC Series) Ordering Code: Order Number MM74HC4514WM MM74HC4514MTC MM74HC4514N Package Number M24B MTC24 N24C Package Description 24-Lead Small Outli

MM74HC4514 General Description

The MM74HC4514 utilizes advanced silicon-gate CMOS technology, which is well suited to memory address decoding or data routing application. It possesses high noise immunity and low power dissipation usually associated with CMOS circuitry, yet speeds comparable to low power Schottky TTL circuits. It .

MM74HC4514 Datasheet (73.65 KB)

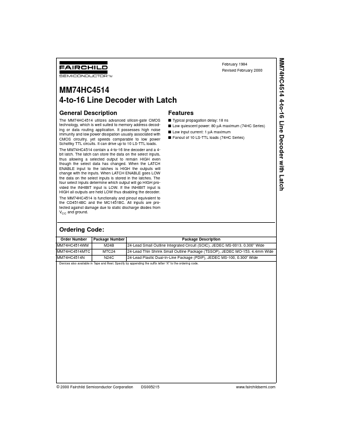

Preview of MM74HC4514 PDF

Datasheet Details

Part number:

MM74HC4514

Manufacturer:

Fairchild

File Size:

73.65 KB

Description:

4-to-16 line decoder with latch.
