MM74HC540

Inverting Octal 3-STATE Buffer

MM74HC540 Features

* s Typical propagation delay: 12 ns s 3-STATE outputs for connection to system buses s Wide power supply range: 2

* 6V s Low quiescent current: 80 µA maximum (74HC Series) s Output current: 6 mA Ordering Code: Order Number MM74HC540WM MM74HC540SJ MM74HC540MTC MM74HC540N MM74HC541WM MM74HC541SJ

MM74HC540 General Description

The MM74HC540 and MM74HC541 3-STATE buffers utilize advanced silicon-gate CMOS technology. They possess high drive current outputs which enable high speed operation even when driving large bus capacitances. These circuits achieve speeds comparable to low power Schottky devices, while retaining the a.

MM74HC540 Datasheet (89.66 KB)

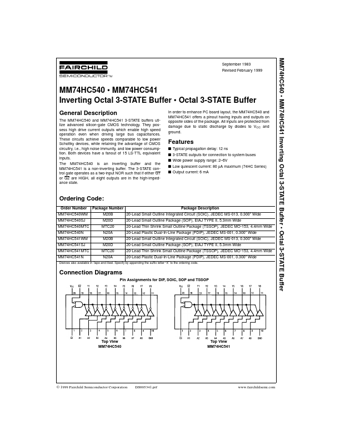

Preview of MM74HC540 PDF

Datasheet Details

Part number:

MM74HC540

Manufacturer:

Fairchild

File Size:

89.66 KB

Description:

Inverting octal 3-state buffer.
MM74HC540

* MM74HC541 Inverting Octal 3-STATE Buffer

* Octal 3-STATE Buffer September 1983 Revised February 1999 MM74HC540

*.
