MM74HC573 Datasheet - Fairchild

3-STATE Octal D-Type Latch

MM74HC573 Features

* s Typical propagation delay: 18 ns s Wide operating voltage range: 2 to 6 volts s Low input current: 1 PA maximum s Low quiescent current: 80 PA maximum (74HC Series) s Compatible with bus-oriented systems s Output drive capability: 15 LS-TTL loads Ordering Code: Order Number Package Number Packa

MM74HC573 General Description

The MM74HC573 high speed octal D-type latches utilize advanced silicon-gate P-well CMOS technology. They possess the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15 LS-TTL loads. Due to the large output drive capability and the 3.

MM74HC573 Datasheet (127.00 KB)

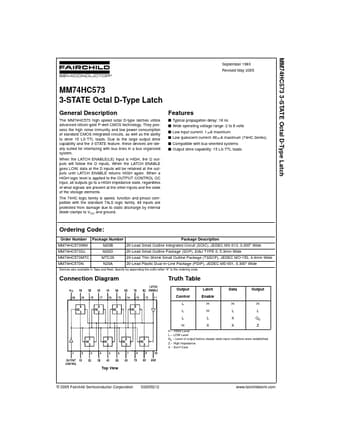

Preview of MM74HC573 PDF

Datasheet Details

Part number:

MM74HC573

Manufacturer:

Fairchild

File Size:

127.00 KB

Description:

3-state octal d-type latch.
