MM74HC533

Octal D-Type Latch

MM74HC533 Features

* Y Typical propagation delay 18 ns Y Wide operating voltage range 2 to 6 volts Y Low input current 1 mA maximum Y Low quiescent current 80 mA maximum (74HC Series) Y Compatible with bus-oriented systems Y Output drive capability 15 LS-TTL loads Connection Diagram Dual-In-Line Package Truth Table O

MM74HC533 Datasheet (91.80 KB)

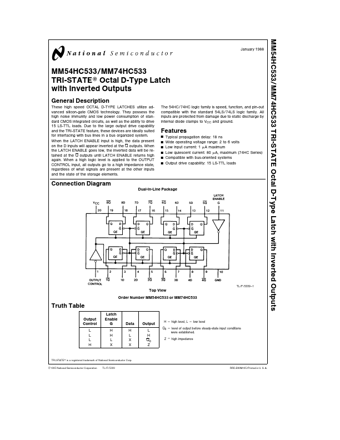

Preview of MM74HC533 PDF

Datasheet Details

Part number:

MM74HC533

Manufacturer:

National Semiconductor

File Size:

91.80 KB

Description:

Octal d-type latch.
MM54HC533 MM74HC533 TRI-STATE Octal D-Type Latch with Inverted Outputs January 1988 MM54HC533 MM74HC533 TRI-STATE Octal D-Type Latch with Inverted O.
