MM74HC51

AND-OR-Invert Gate

MM74HC51 Features

* Y Typical propagation delay 10 ns Y Wide power supply range 2

* 6V Y Low quiescent supply current 20 mA maximum (74 Series) Y Low input current 1 mA maximum Y High output current 4 mA minimum Connection Diagrams Dual-In-Line Package Top View Order Number MM54HC51 or MM74HC51 Dual-In-Line

MM74HC51 General Description

These gates utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits All gates have buffered outputs providing high noise immunity and the ability to drive 10 LS-TTL loads The 54HC 74HC logic.

MM74HC51 Datasheet (110.48 KB)

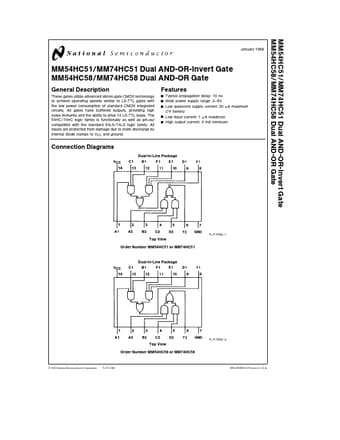

Preview of MM74HC51 PDF

Datasheet Details

Part number:

MM74HC51

Manufacturer:

National Semiconductor

File Size:

110.48 KB

Description:

And-or-invert gate.
MM54HC51 MM74HC51 Dual AND-OR-Invert Gate MM54HC58 MM74HC58 Dual AND-OR Gate January 1988 MM54HC51 MM74HC51 Dual AND-OR-Invert Gate MM54HC58 MM74HC5.
