MM74HC574

3-STATE Octal D-Type Edge-Triggered Flip-Flop

MM74HC574 Features

* s Typical propagation delay: 18 ns s Wide operating voltage range: 2V

* 6V s Low input current: 1 µA maximum s Low quiescent current: 80 µA maximum s Compatible with bus-oriented systems s Output drive capability: 15 LS-TTL loads Ordering Code: Order Number MM74C574WM MM74C574SJ MM74C574MTC M

MM74HC574 General Description

The MM74HC574 high speed octal D-type flip-flops utilize advanced silicon-gate P-well CMOS technology. They possess the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15 LS-TTL loads. Due to the large output drive capability and th.

MM74HC574 Datasheet (90.49 KB)

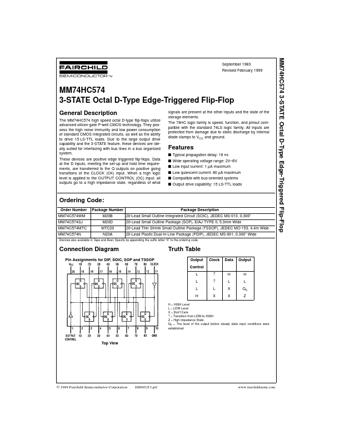

Preview of MM74HC574 PDF

Datasheet Details

Part number:

MM74HC574

Manufacturer:

Fairchild

File Size:

90.49 KB

Description:

3-state octal d-type edge-triggered flip-flop.
MM74HC574 3-STATE Octal D-Type Edge-Triggered Flip-Flop September 1983 Revised February 1999 MM74HC574 3-STATE Octal D-Type Edge-Triggered Flip-Flop.
