NM27C040 - 4 /194 /304-Bit (512K x 8) High Performance CMOS EPROM

NM27C040 Description

NM27C040 4,194,304-Bit (512K x 8) High Performance CMOS EPROM February 1999 NM27C040 4,194,304-Bit (512K x 8) High Performance CMOS EPROM General De.
The NM27C040 is a high performance, 4,194,304-bit Electrically Programmable UV Erasable Read Only Memory.

NM27C040 Features

* s High performance CMOS
* 120, 150ns access time
* s Simplified upgrade path
* VPP is a “Don’t Care” during normal read operation s Manufacturer’s identification code s JEDEC standard pin configuration
* 32-pin PDIP
* 32-pin PLCC
* 32-pin CERDIP
* Note:

📥 Download Datasheet

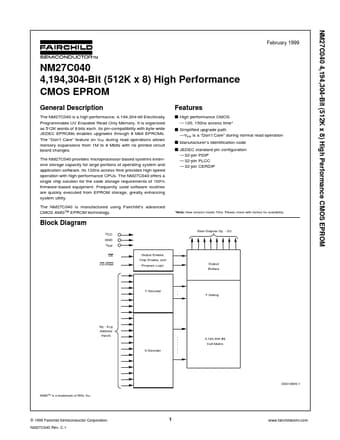

Preview of NM27C040 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NM27C040
Manufacturer
Fairchild
File Size
111.11 KB
Datasheet
NM27C040_FairchildSemiconductor.pdf
Description
4 /194 /304-Bit (512K x 8) High Performance CMOS EPROM
