NM27C240 - 4 /194 /304-Bit (256k x 16) High Performance CMOS EPROM

NM27C240 Description

NM27C240 4,194,304-Bit (256k x 16) High Performance CMOS EPROM July 1998 NM27C240 4,194,304-Bit (256k x 16) High Performance CMOS EPROM General Desc.
The NM27C240 is a high performance Electrically Programmable UV erasable ROM (EPROM).

NM27C240 Features

* s High performance CMOS
* 100 ns access time s Fast turn-off for microprocessor compatibility s Simplified upgrade path
* VPP and PGM are “Don’t Care” during normal read operation s Compatible with 27240 and 27C240 EPROMs s JEDEC standard pin configuration
* 40-pin DIP packag

NM27C240 Applications

* as well as nonerasable, plastic packaged versions that are ideal for high volume and automated assembly applications. The NM27C240 operates from a single 5V ±10% supply in the read mode. The NM27C240 is offered in both DIP and surface mount packages. The DIP package is a 40-pin dual-in-line ceramic

📥 Download Datasheet

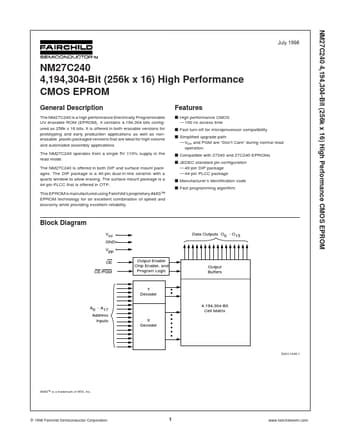

Preview of NM27C240 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NM27C240
Manufacturer
Fairchild
File Size
96.70 KB
Datasheet
NM27C240_FairchildSemiconductor.pdf
Description
4 /194 /304-Bit (256k x 16) High Performance CMOS EPROM
