NM27C512

524 /288-Bit (64K x 8) High Performance CMOS EPROM

NM27C512 Features

* s High performance CMOS

* 90 ns access time s Fast turn-off for microprocessor compatibility s Manufacturers identification code s JEDEC standard pin configuration

* 28-pin PDIP package

* 32-pin chip carrier

* 28-pin CERDIP package Block Diagram VCC GND VPP OE CE/PGM

NM27C512 General Description

The NM27C512 is a high performance 512K UV Erasable Electrically Programmable Read Only Memory (EPROM). It is manufactured using Fairchild’s proprietary CMOS AMG™ EPROM technology for an excellent combination of speed and economy while providing excellent reliability. The NM27C512 provides microproc.

NM27C512 Datasheet (105.99 KB)

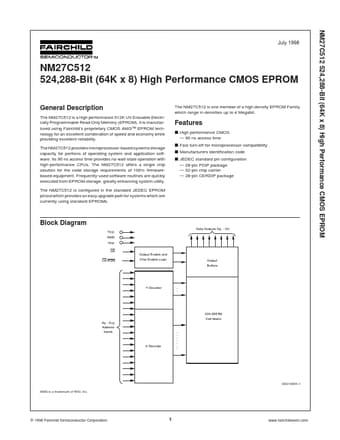

Preview of NM27C512 PDF

Datasheet Details

Part number:

NM27C512

Manufacturer:

Fairchild

File Size:

105.99 KB

Description:

524 /288-bit (64k x 8) high performance cmos eprom.
