FP120 Datasheet, Ic, Feeling Technology

FP120 Features

  • Ic ˙Independent power supply voltage: 2.7 to 15V ˙Wide input common-mode voltage: 2.7 to 15V ˙Source current emitter output ˙Three resistors gain set-up ˙Wide temperature range: 0℃ to +85℃

PDF File Details

Part number:

FP120

Manufacturer:

Feeling Technology

File Size:

394.65kb

Download:

📄 Datasheet

Description:

Rail current measurement ic. The FP120 is a wide input supply and common mode voltage IC for the high side rail current measurement of the power system such as ba

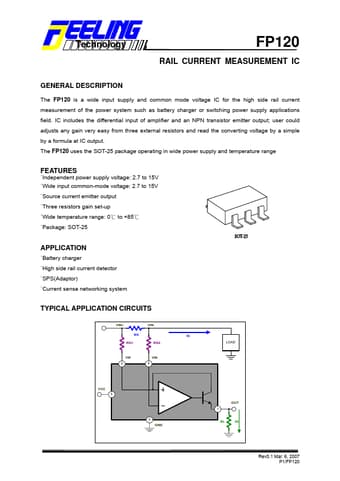

Datasheet Preview: FP120 📥 Download PDF (394.65kb)
Page 2 of FP120 Page 3 of FP120

FP120 Application

  • Applications field. IC includes the differential input of amplifier and an NPN transistor emitter output; user could adjusts any gain very easy from
