FP1208 high current power inductors

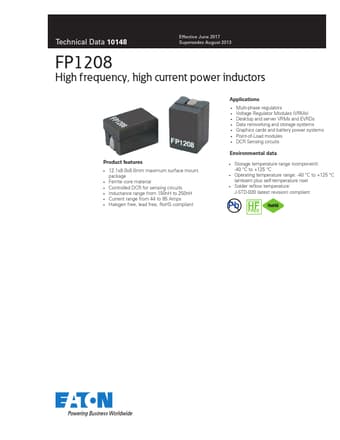

📥 Download Datasheet  Datasheet Preview Page 1

Description

Technical Data 10148 Effective June 2017 Supersedes August 2013 FP1208 High frequency, high current power inductors Product .

📥 Download Datasheet

Preview of FP1208 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
FP1208
Manufacturer
EATON
File Size
533.56 KB
Datasheet
FP1208-EATON.pdf
Description
high current power inductors

Features

* 12.1x8.0x8.0mm maximum surface mount package
* Ferrite core material
* Controlled DCR for sensing circuits
* Inductance range from 150nH to 250nH
* Current range from 44 to 85 Amps

Applications

* Multi-phase regulators
* Voltage Regulator Modules (VRMs)
* Desktop and server VRMs and EVRDs
* Data networking and storage systems
* Graphics cards and battery power systems
* Point-of-Load modules
* DCR Sensing circuits Environmental data
