FP5001

PWM CONTROL IC

FP5001 Features

* Reference Voltage Precision: 2% Output sink current up to 100mA Low quiescent supply current Wide operating voltage range: 3.6~40V Variable dead-time control (DTC) UVLO protection function SCP protection function Oscillator Frequency: Max. 500KHz Package: PDIP8/ SOP8 TYPICAL APPLICATION CIRCUIT Re

FP5001 General Description

FP5001 PWM CONTROL IC WITH SCP/DTC FUNCTION The FP5001, a 1-chi p co mposed of o pen collector tran sistor o utput pulse-wi dth-modulation control circuits with an error amplifier and dead-time comparators (DTC), the FP5001 contains a 1.0V precision voltage reference regulator, under-voltage locko.

FP5001 Datasheet (366.32 KB)

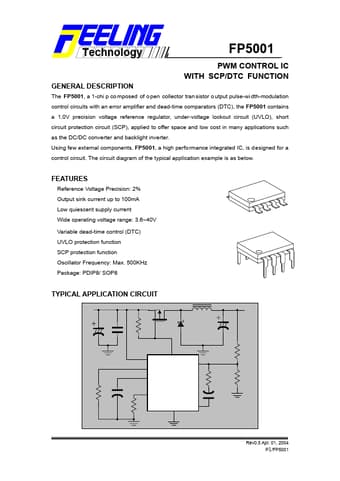

Preview of FP5001 PDF

Datasheet Details

Part number:

FP5001

Manufacturer:

Feeling Technology

File Size:

366.32 KB

Description:

Pwm control ic.
