FP50R07N2E4_B11 - IGBT

Infineon

FP50R07N2E4_B11 Description

FP50R07N2E4_B11 EconoPIM™2 Modul mit Trench/Feldstopp IGBT4 und Emitter Controlled 3 Diode und PressFIT / NTC EconoPIM™2 module with Trench/Fieldstop .

FP50R07N2E4_B11 Features

* Increased blocking voltage capability up to 650V
* High short-circuit capability
* Tvj op = 150°C
* Trench IGBT 4
* VCEsat with positive temperature coefficient Mechanical Features
* Integrated NTC temperature sensor
* Isolated base plate

📥 Download Datasheet

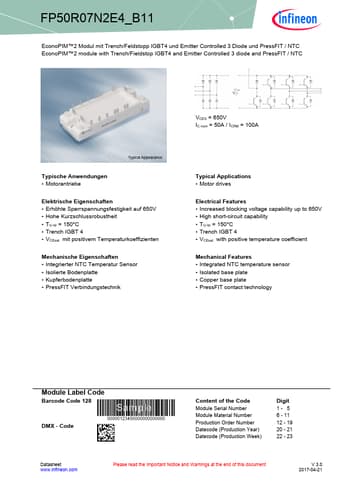

FP50R07N2E4_B11 Datasheet Preview — Preview of FP50R07N2E4_B11 PDF

Datasheet Details

Part number: FP50R07N2E4_B11
Manufacturer: Infineon ↗
File Size: 771.06 KB
Datasheet: FP50R07N2E4_B11-Infineon.pdf
Description: IGBT
