FP50R06W2E3 IGBT

FP50R06W2E3 Description

Technische Information / Technical Information IGBT-Module IGBT-modules FP50R06W2E3 EasyPIM™ Modul mit Trench/Feldstopp IGBT3 und Emitter Controlle.

FP50R06W2E3 Features

* Low Switching Losses
* Trench IGBT 3
* VCEsat with positive Temperature Coefficient
* Low VCEsat Mechanical Features
* Al2O3 Substrate with Low Thermal Resistance
* Compact design
* Solder Contact Technology
* Rugged mounting due to

FP50R06W2E3 Applications

* Auxiliary Inverters
* Air Conditioning

📥 Download Datasheet

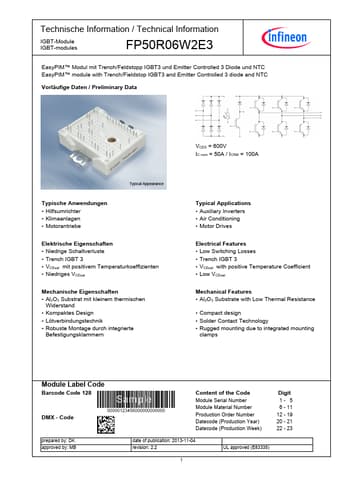

Preview of FP50R06W2E3 PDF
datasheet Preview Page 2 datasheet Preview Page 3
