FP50R07N2E4 - IGBT

FP50R07N2E4 Description

FP50R07N2E4 EconoPIM™2 Modul mit Trench/Feldstopp IGBT4 und Emitter Controlled 3 Diode und NTC EconoPIM™2 module with Trench/Fieldstop IGBT4 and Emitt.

FP50R07N2E4 Features

* Increased blocking voltage capability up to 650V
* High short-circuit capability
* Tvj op = 150°C
* Trench IGBT 4
* VCEsat with positive temperature coefficient Mechanical Features
* Integrated NTC temperature sensor
* Isolated base plate

📥 Download Datasheet

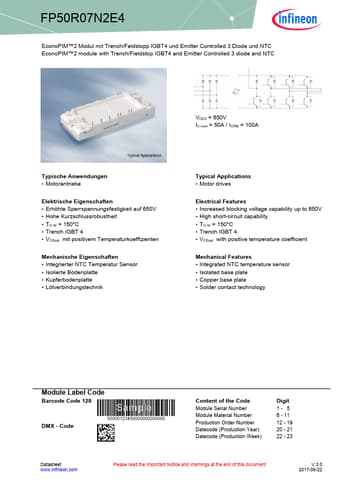

Preview of FP50R07N2E4 PDF
datasheet Preview Page 2 datasheet Preview Page 3
