FP5003

High Frequency PWM Controller

FP5003 Features

* Wide Operating Voltage Range:3.6~30V

* Reference Voltage Precision: ±2%

* Output Source / Sink Current up to 100mA

* Totem-Pole Output for MOS Drive

* Oscillator Frequency:Max.1.5MHz

* Variable Duty Control (DTC)

* Under Voltage Lockout Protection Function (UVLO)

FP5003 General Description

The FP5003, a high performance monolithic IC, includes adjustable frequency oscillator, error amplifier for pulse width modulation (PWM) control, 1.0V precision voltage reference, under-voltage lockout circuit (UVLO), variable pulse duty control (DTC) circuit and programmable auto-restart timer for .

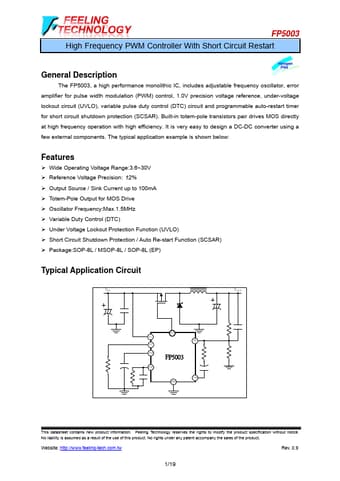

FP5003 Datasheet (539.23 KB)

Preview of FP5003 PDF

Datasheet Details

Part number:

FP5003

Manufacturer:

Feeling Technology

File Size:

539.23 KB

Description:

High frequency pwm controller.
