FP8013

1.5MHz Buck Constant Current Switching Regulator

Feeling Technology

FP8013 Features

* include thermal shutdown, cycle-by cycle current limit and over current protection Features

* Input Voltage Range: 2.5 to 5.5V

* Adjustable Output Voltage From 0.1V to VIN

* Precision Feedback Reference Voltage: 0.1V (±10%)

* Output Current: 3A (Max.)

* Duty Cycle: 0~100%

* I

FP8013 General Description

The FP8013 is a PWM control buck converter designed to provide a simple, high efficiency solution for driving high power LEDs. With a 0.1V reference voltage feedback control to minimize power dissipation, an external resistor sets the current as needed for driving various types of LEDs. The FP8013 i.

FP8013 Datasheet (456.12 KB)

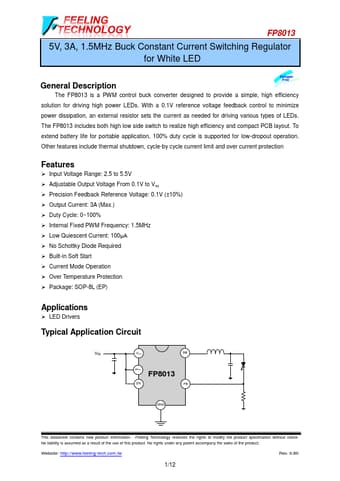

FP8013 Datasheet Preview — Preview of FP8013 PDF

Datasheet Details

Part number:

FP8013

Manufacturer:

Feeling Technology

File Size:

456.12 KB

Description:

1.5mhz buck constant current switching regulator.
