FP812 Datasheet - Sanken electric

FP812 Power Transistor

Power Transistor FP812 Absolute Maximum Ratings (Ta=25ºC) Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Ratings 120 120 6 8 (pulse 12) 3 35 (Tc=25ºC) 150 55 to +150 Unit V V V A A W ºC ºC Electrical Characteristics Symbol ICBO IEBO VCEO hFE VCE (sat) Test Conditions VCB = 120V VEB = 6V IC = 50mA VCE = 4V, IC = 3A IC = 3A, IB = 0.3A Ratings 10max 10max 120min 70min

FP812_Sankenelectric.pdf

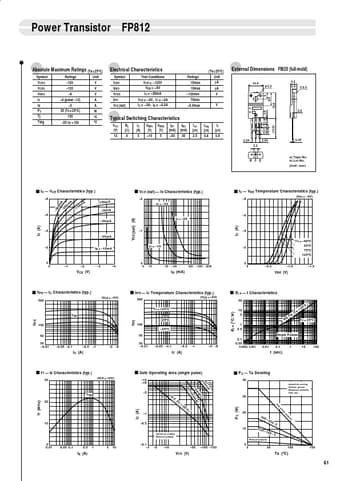

Preview of FP812 PDF

Datasheet Details

Part number:

FP812

Manufacturer:

Sanken ↗ electric

File Size:

23.76 KB

Description:

Power transistor.
