FP8207 - 16V 3A Multi-Cell Battery Switching Charger

Product Overview

Feeling Technology

Datasheet Details

Part number	FP8207
Manufacturer	Feeling Technology
File Size	699.70 KB
Description	16V 3A Multi-Cell Battery Switching Charger
Datasheet	FP8207 Datasheet

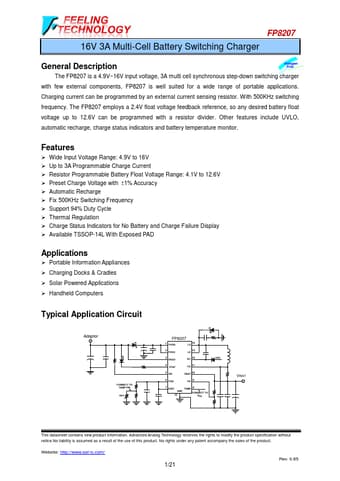

Additional preview pages of the FP8207 datasheet.

Product details

Description

The FP8207 is a 4.9V~16V input voltage, 3A multi cell synchronous step-down switching charger with few external components, FP8207 is well suited for a wide range of portable applications.

Features

include UVLO, automatic recharge, charge status indicators and battery temperature monitor. Features.
Wide Input Voltage Range: 4.9V to 16V.
Up to 3A Programmable Charge Current.
Resistor Programmable Battery Float Voltage Range: 4.1V to 12.6V.
Preset Charge Voltage with ±1% Accuracy.
Automatic Recharge.
Fix 500KHz Switching Frequency.
Support 94% Duty Cycle.
Thermal Regulation.
Charge Status Indicators for No Battery and Charge Failure Display.
