FP8202

2A Switch-Mode Li-Ion Battery Charger

Feeling Technology

FP8202 Features

* include UVLO, automatic recharge, charge status indicators and battery temperature monitor. Features

* Up to 2A Programmable Charge Current

* No external MOSFET, Sense Resistor, or Blocking Diode Required

* Switch-model Charger for single cell Li-Ion Batteries

* Preset Charge Voltag

FP8202 General Description

The FP8202 is a highly integrated switch-mode Li-Ion Battery Charger. With few external components, FP8202 is well suited for a wide range of portable applications. Charging current can be programmed by an external current sensing resistor. With 600KHz switching frequency, FP8202 can use of small ex.

FP8202 Datasheet (592.65 KB)

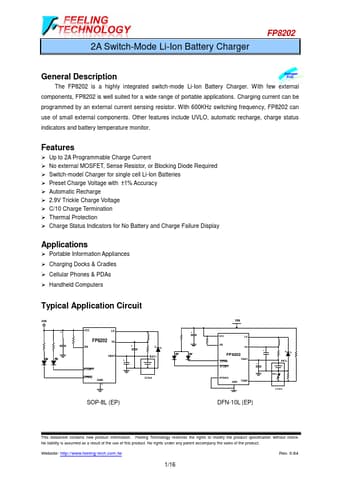

FP8202 Datasheet Preview — Preview of FP8202 PDF

Datasheet Details

Part number:

FP8202

Manufacturer:

Feeling Technology

File Size:

592.65 KB

Description:

2a switch-mode li-ion battery charger.
