FP8203

2A Switch-Mode Li-Ion Battery Charger

Feeling Technology

FP8203 Features

* include UVLO, automatic recharge, charge status indicators and battery temperature monitor. Features

* Up to 2A Programmable Charge Current

* No external MOSFET, Sense Resistor, or Blocking Diode Required

* Switch-model Charger for single cell Li-Ion Batteries

* Preset Charge Voltag

FP8203 General Description

The FP8203 is a highly integrated switch-mode Li-Ion Battery Charger. With few external components, FP8203 is well suited for a wide range of portable applications. Charging current can be programmed by an external current sensing resistor. With 600KHz switching frequency, FP8203 can use of small ex.

FP8203 Datasheet (592.94 KB)

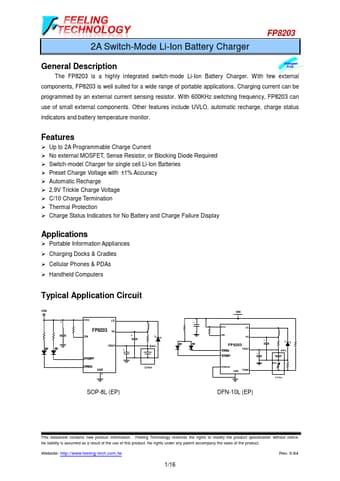

FP8203 Datasheet Preview — Preview of FP8203 PDF

Datasheet Details

Part number:

FP8203

Manufacturer:

Feeling Technology

File Size:

592.94 KB

Description:

2a switch-mode li-ion battery charger.
