GM240320W-28-TTX2NLW-12

Color TFT Display

GM240320W-28-TTX2NLW-12 Features

* : : : : : : : : : Transmissive color active matrix LCD panel TN (Twisted Nematic) mode SPFD5408 or Compatible IC(ILI9325) Low power consumption 80 System Interface (16 bit bus) 172,800 bytes max. 262,144 colors 50 (W) × 69.2 (H) × 2.9 (D) mm 43.2 (W) × 57.6 (H) mm 0.06 (W) × 0.18 (H) mm 12 O’ Clock

GM240320W-28-TTX2NLW-12 General Description

Color TFT Display 2.8” Diagonal Size 240X320 Resolution 12 O’ clock viewing RoHS Compliant Fema Electronics Corporation: California Office: 17815 Newhope Street, Suite G, Fountain Valley, CA 92708 Tel: 714-825-0140 New Jersey Office: 12 Stults Road, Suite 133, Dayton, NJ 08810 Tel: 609-409-1720 Pl.

GM240320W-28-TTX2NLW-12 Datasheet (558.58 KB)

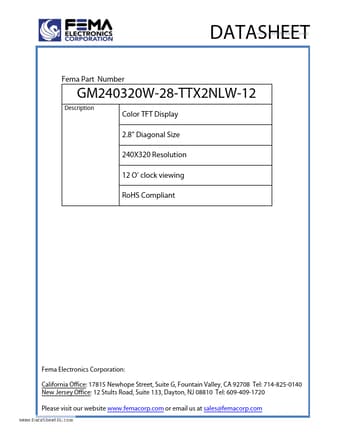

Preview of GM240320W-28-TTX2NLW-12 PDF

Datasheet Details

Part number:

GM240320W-28-TTX2NLW-12

Manufacturer:

Fema Electronics Corporation

File Size:

558.58 KB

Description:

Color tft display.
