GM246401 Datasheet - OPTO Logic

GM246401 240 x 64 dots Display Module

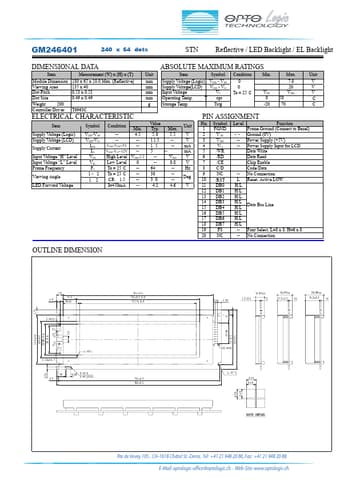

GM246401 240 x 64 dots STN Reflective / LED Backlight / EL Backlight DIMENSIONAL DATA ABSOLUTE MAXIMUM RATINGS Item Measurement (W) x (H) x (T) Unit Item Symbol Condition Min. Max. Unit Module Dimension 180 x 65 x 10.0 Max. (Reflective) mm Supply Voltage (Logic) VDD - VSS 0 7.0 V Viewing Area 135 x 40 mm Supply Voltage(LCD) VDD - VO 0 20 V Dot Pitch 0.53 x 0.53 mm Input Voltage VI Ta = 25 C VSS VDD V Dot Size 0.49 x 0.49 mm Operating Temp. T opr 0 50 C Weight .

GM246401-OPTOLogic.pdf

GM246401 Datasheet Preview — Preview of GM246401 PDF

Datasheet Details

Part number:

GM246401

Manufacturer:

OPTO Logic

File Size:

330.87 KB

Description:

240 x 64 dots display module.
