GM246400 Datasheet - OPTO Logic

GM246400 - 240 x 64 dots Display Module

GM246400 240 x 64 dots STN Reflective / LED Backlight / EL Backlight DIMENSIONAL DATA ABSOLUTE MAXIMUM RATINGS Item Measurement (W) x (H) x (T) Unit Item Symbol Condition Min.

Max.

Unit Module Dimension Viewing Area Dot Pitch Dot Size 180 x 65 x 10 Max.

(Reflective) 135 x 40 0.53 x 0.53 0.49 x 0.49 mm Supply Voltage (Logic) VDD - VSS 0 7.0 V mm Supply Voltage(LCD) VDD - VO 0 19.0 V mm Input Voltage VI Ta = 25 C VSS-0.3 VDD +0.3 V mm Operating Temp.

T opr 0 50 C Weight

GM246400-OPTOLogic.pdf

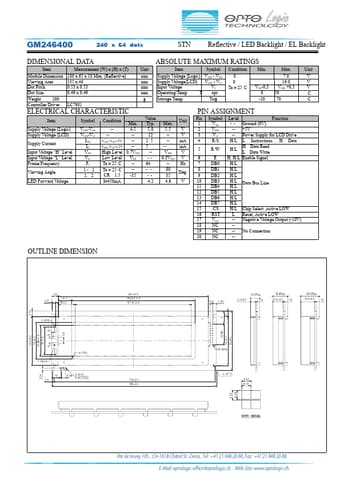

Preview of GM246400 PDF

Datasheet Details

Part number:

GM246400

Manufacturer:

OPTO Logic

File Size:

330.62 KB

Description:

240 x 64 dots display module.
