LMA208C 2-26 GHz PHEMT Amplifier

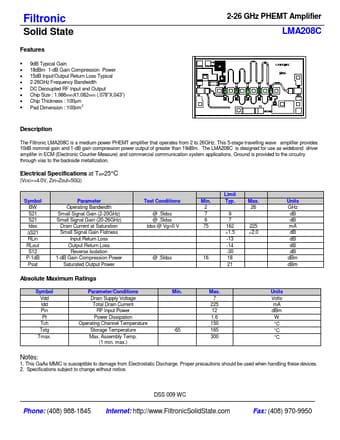

📥 Download Datasheet  Datasheet Preview Page 1

Description

Filtronic Solid State .
The Filtronic LMA208C is a medium power PHEMT amplifier that operates from 2 to 26GHz.

📥 Download Datasheet

Preview of LMA208C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* 9dB Typical Gain 18dBm 1-dB Gain Compression Power 15dB Input/Output Return Loss Typical 2-26GHz Frequency Bandwidth DC Decoupled RF Input and Output Chip Size : 1.986mmX1.082mm (.078”X.043”) Chip Thickness : 100µm 2 Pad

Applications

* Ground is provided to the circuitry through vias to the backside metallization. Electrical Specifications at Ta=25°C (VDD=+4.0V, Zin=Zout=50Ω) Limit Typ. 9 7 162 ±1.5 -13 -14 -30 18 21 Symbol BW S21 S21 Idss ∆S21 RLin RLout S12 P-1dB Psat Parameter Operating Bandwidth Small Signal Gain (2-20GHz)
