LMA208G, 2-26GHz PHEMT Amplifier

Filtronic Solid State .
The Filtronic LMA208G is a medium power PHEMT amplifier that operates from 2 to 26GHz.

datasheet Preview Page 1 from Datasheet4u.com

LMA208G_FiltronicCompoundSemiconductors.pdf

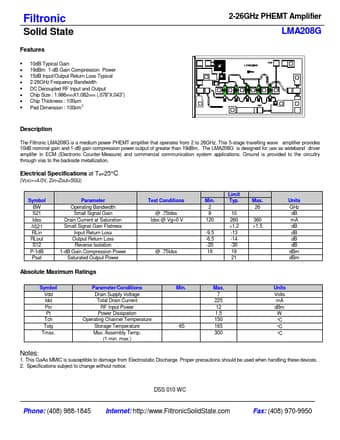

LMA208G Datasheet Preview — Preview of LMA208G PDF

Datasheet Details

Part number:

LMA208G

Manufacturer:

Filtronic Compound Semiconductors

File Size:

158.99 KB

Description:

2-26GHz PHEMT Amplifier

Features

* 10dB Typical Gain 19dBm 1-dB Gain Compression Power 15dB Input/Output Return Loss Typical 2-26GHz Frequency Bandwidth DC Decoupled RF Input and Output Chip Size : 1.986mmX1.082mm (.078”X.043”) Chip Thickness : 100µm 2 Pa

Applications

* Ground is provided to the circuitry through vias to the backside metallization. Electrical Specifications at Ta=25°C (VDD=+4.0V, Zin=Zout=50Ω) Limit Typ. 10 260 ±1.2 -13 -14 -30 19 21 Symbol BW S21 Idss ∆S21 RLin RLout S12 P-1dB Psat Parameter Operating Bandwidth Small Signal Gain Drain Current
