LMA110A, .5-6 GHz MESFET Amplifier

Filtronic Solid State .
The Filtronic LMA110A is a GaAs monolithic distributive amplifier which operates from 0.

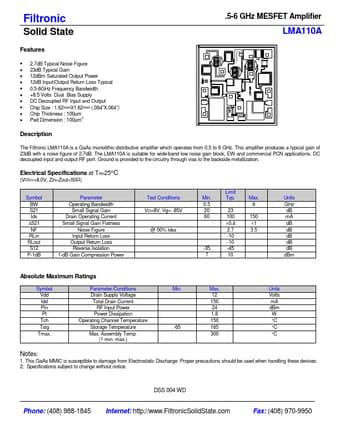

datasheet Preview Page 1 from Datasheet4u.com

LMA110A_FiltronicCompoundSemiconductors.pdf

LMA110A Datasheet Preview — Preview of LMA110A PDF

Datasheet Details

Part number:

LMA110A

Manufacturer:

Filtronic Compound Semiconductors

File Size:

80.91 KB

Description:

.5-6 GHz MESFET Amplifier

Features

* 2.7dB Typical Noise Figure 23dB Typical Gain 12dBm Saturated Output Power 12dB Input/Output Return Loss Typical 0.5-6GHz Frequency Bandwidth +8.5 Volts Dual Bias Supply DC Decoupled RF Input and Outpu

Applications

* DC decoupled input and output RF port. Ground is provided to the circuitry through vias to the backside metallization. Electrical Specifications at Ta=25°C (VDD=+8.0V, Zin=Zout=50Ω) Limit Typ. 23 100 ±0.4 2.7 -10 -10 -45 10 Symbol BW S21 Ids ∆S21 NF RLin RLout S12 P-1dB Parameter Operating Bandw
