LMA184 Datasheet - Filtronic Compound Semiconductors

LMA184, 2-18 GHz MESFET Amplifier

Filtronic Solid State .

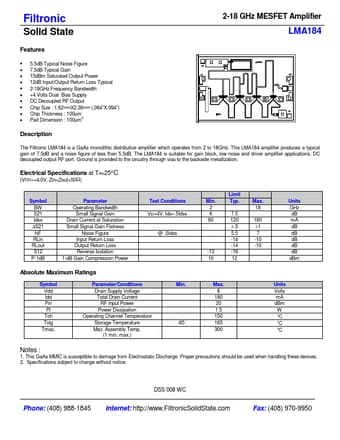

The Filtronic LMA184 is a GaAs monolithic distributive amplifier which operates from 2 to 18GHz.

datasheet Preview Page 1 from Datasheet4u.com

LMA184_FiltronicCompoundSemiconductors.pdf

LMA184 Datasheet Preview — Preview of LMA184 PDF

Datasheet Details

Part number:

LMA184

Manufacturer:

Filtronic Compound Semiconductors

File Size:

67.57 KB

Description:

2-18 GHz MESFET Amplifier

Features

* 5.5dB Typical Noise Figure 7.5dB Typical Gain 15dBm Saturated Output Power 12dB Input/Output Return Loss Typical 2-18GHz Frequency Bandwidth +4 Volts Dual Bias Supply DC Decoupled RF Output Chip Size

Applications

* DC decoupled output RF port. Ground is provided to the circuitry through vias to the backside metallization. Electrical Specifications at Ta=25°C (VDD=+4.0V, Zin=Zout=50Ω) Symbol BW S21 Idss ∆S21 NF RLin RLout S12 P-1dB Parameter Operating Bandwidth Small Signal Gain Drain Current at Saturation
