LMA116 2-10GHz MESFET Amplifier

The Filtronic LMA116 is a GaAs monolithic distributive amplifier which operates from 2 to 10GHz. This amplifier is self biased and four 450µm FETs are used to produce a typical gain of 15dB and a noise figure of 4.5dB. The LMA116 is suitable for gain block, low noise and driver amplifier application.

LMA116 Features

* 4.5dB Typical Noise Figure 15dB Typical Gain 18dBm Saturated Output Power 12dB Input/Output Return Loss Typical 2-10GHz Frequency Bandwidth +8 Volts Single Bias Supply DC Decoupled RF Output Chip Size

LMA116_FiltronicCompoundSemiconductors.pdf

Preview of LMA116 PDF

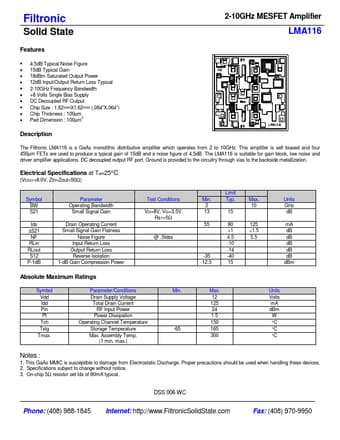

LMA116 Datasheet Preview Page 2 LMA116 Datasheet Preview Page 3

Datasheet Details

Part number:

LMA116

Manufacturer:

Filtronic Compound Semiconductors

File Size:

160.87 KB

Description:

2-10ghz mesfet amplifier.
