LMA183 - 2-18 GHz MESFET Amplifier

LMA183 Description

Filtronic Solid State .
The Filtronic LMA183 is a GaAs monolithic distributive amplifier which operates from 2 to 18GHz.

LMA183 Features

* 5.5dB Typical Noise Figure 7.5dB Typical Gain 15dBm Saturated Output Power 12dB Input/Output Return Loss Typical 2-18GHz Frequency Bandwidth +4 Volts Dual Bias Supply DC Decoupled RF Output Chip Size

LMA183 Applications

* DC decoupled output RF port. Ground is provided to the circuitry through vias to the backside metallization. Electrical Specifications at Ta=25°C (VDD=+4.0V, Zin=Zout=50Ω) Symbol BW S21 Idss ∆S21 NF RLin RLout S12 P-1dB Limit Typ. 7.5 100 ±.5 5.5 -14 -14 -16 12 Parameter Operating Bandwidth Small

📥 Download Datasheet

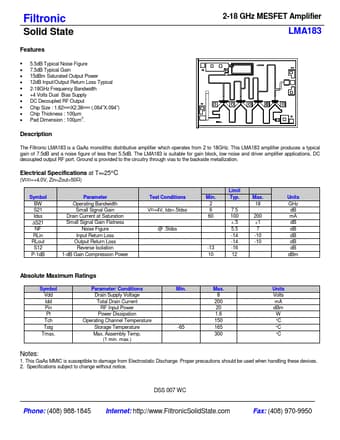

Preview of LMA183 PDF
