FR9701

600KHz Asynchronous Synchronous Step-Down DC/DC Converter

FR9701 Features

* 2A Output Current

* 180mΩ Internal Power MOSFET Switch

* Stable with Low ESR Output Ceramic Capacitors

* Up to 92% Efficiency

* Fixed 600KHz Frequency

* Current Mode Operation

* Over-Temperature Protection with Hiccup-Mode

* Cycle-by-Cycle Over Current Protection

FR9701 General Description

The FR9701 is a monolithic step-down switch mode converter with a built-in power MOSFET. It achieves 2A output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault condition protect.

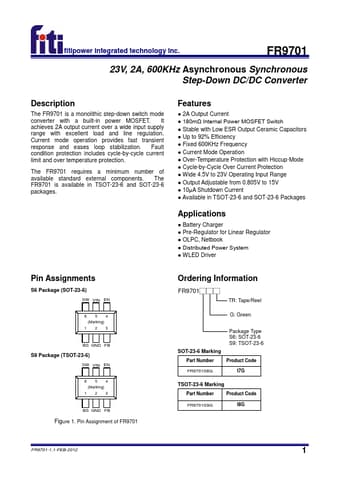

FR9701 Datasheet (649.94 KB)

Preview of FR9701 PDF

Datasheet Details

Part number:

FR9701

Manufacturer:

Fiti

File Size:

649.94 KB

Description:

600khz asynchronous synchronous step-down dc/dc converter.
