FR9702

1.4MHz Asynchronous Step-Down DC/DC Converter

FR9702 Features

* z 1.8A Output Current z 180mΩ Internal Power MOSFET Switch z Stable with Low ESR Output Ceramic Capacitors z Up to 92% Efficiency z Fixed 1.4MHz Frequency z Current Mode Operation z Over-Temperature Protection with Hiccup-Mode z Cycle-by-Cycle Over Current Protection z Wide 4.5V to 23V Operating Inp

FR9702 General Description

The FR9702 is a monolithic step-down switch mode converter with a built-in power MOSFET. It achieves 1.8A output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault condition prote.

FR9702 Datasheet (387.15 KB)

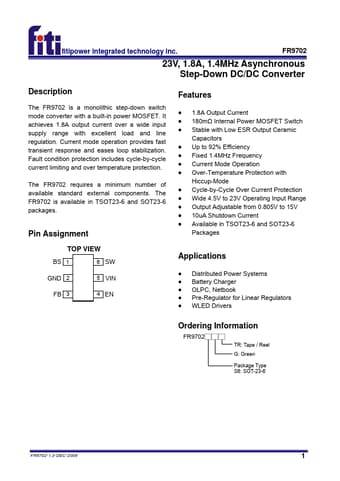

Preview of FR9702 PDF

Datasheet Details

Part number:

FR9702

Manufacturer:

Fiti

File Size:

387.15 KB

Description:

1.4mhz asynchronous step-down dc/dc converter.
