FR9723B

380KHz Asynchronous Step-Down DC/DC Converter

FR9723B Features

* Wide Input Voltage from 4.75V to 23V

* 3A Output Current

* Adjustable Output Voltage from 1.23V to 20V

* 100mΩ Integrated Power MOSFET

* High Efficiency up to 90%

* Fixed 380KHz Switching Frequency

* Current Mode Operation

* Adjustable Soft-Start

* Cycle-by-Cycl

FR9723B General Description

The FR9723B is a 380KHz step-down DC/DC converter that provides wide 4.75V to 23V input voltage range and 3A continuous load current capability. Fault protection includes cycle-by-cycle current limit, input UVLO and thermal shutdown. Besides, adjustable soft-start function prevents inrush current at.

FR9723B Datasheet (743.16 KB)

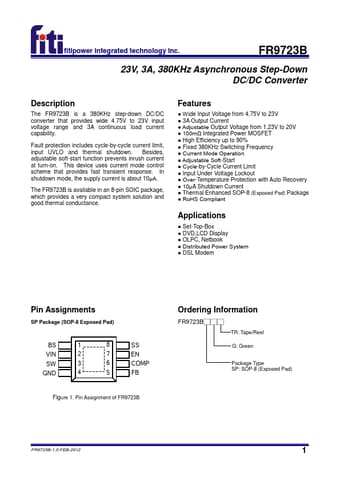

Preview of FR9723B PDF

Datasheet Details

Part number:

FR9723B

Manufacturer:

Fiti

File Size:

743.16 KB

Description:

380khz asynchronous step-down dc/dc converter.
