2SC3807

SILICON NPN TRANSISTOR

2SC3807 Features

* Large current capacity, high DC current gain, Low collector-to-emitter saturation voltage High VEBO. /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO VCEO VEBO IC ICM PC PC(TC=25℃) Tj Tstg 30 25 15 2.0 4.0 1.2 15 150 -55~150 V V V A A W W ℃ ℃ /Electrical characteristics(Ta=25

2SC3807 Datasheet (222.85 KB)

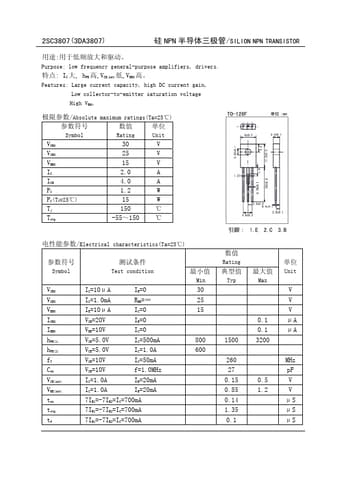

Preview of 2SC3807 PDF

Datasheet Details

Part number:

2SC3807

Manufacturer:

Foshan Eming Electronics

File Size:

222.85 KB

Description:

Silicon npn transistor.
