HCS12H 16-bit Microcontroller

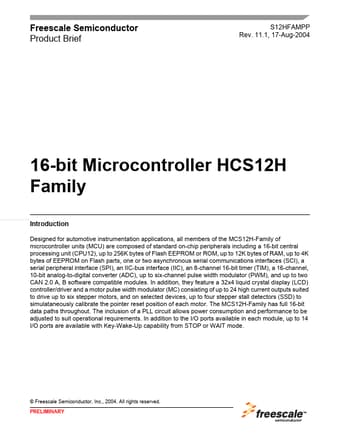

Freescale Semiconductor Product Brief S12HFAMPP Rev. 11.1, 17-Aug-2004 16-bit Microcontroller HCS12H Family www.DataSheet4U.com Introduction Designed for automotive instrumentation applications, all members of the MCS12H-Family of microcontroller units (MCU) are composed of standard on-chip peripherals including a 16-bit central processing unit (CPU12), up to 256K bytes of Flash EEPROM or ROM, up to 12K bytes of RAM, up to 4K bytes of EEPROM on Flash parts, one or two asynchronous serial comm.

HCS12H Features

* listed here are available in all configurations. For a quick overview refer to Table 1.

* HCS12 Core

* HCS12 16-bit CPU

* Upward compatible with M68HC11 instruction set

* Interrupt stacking and programmer’s model identical to M68HC11

* Instruction queue
