HCS112MS

Radiation Hardened Dual JK Flip-Flop

HCS112MS Features

* 3 Micron Radiation Hardened SOS CMOS

* Total Dose 200K RAD (Si)

* SEP Effective LET No Upsets: >100 MEV-cm2/mg

* Single Event Upset (SEU) Immunity < 2 x 10-9 Errors/ Bit-Day (Typ)

* Dose Rate Survivability: >1 x 1012 RAD (Si)/s

* Dose Rate Upset >10

HCS112MS General Description

The Intersil HCS112MS is a Radiation Hardened dual JK flip-flop with set and reset. The output changes state on the negative going transition of the clock pulse. Set and reset are accomplished asynchronously by a logic low input level. The HCS112MS utilizes advanced CMOS/SOS technology to achieve high.

HCS112MS Datasheet (180.58 KB)

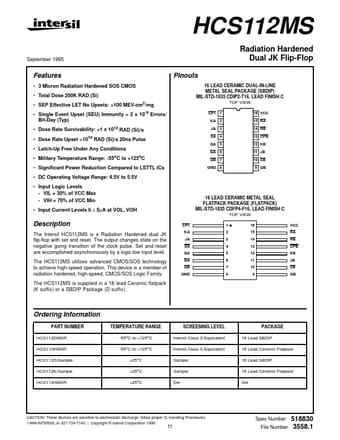

Preview of HCS112MS PDF

Datasheet Details

Part number:

HCS112MS

Manufacturer:

Intersil Corporation

File Size:

180.58 KB

Description:

Radiation hardened dual jk flip-flop.
HCS112MS September 1995 Radiation Hardened Dual JK Flip-Flop Pinouts 16 LEAD CERAMIC DUAL-IN-LINE METAL SEAL PACKAGE (SBDIP) MIL-STD-1835 CDIP2-T16, .
